Description
| Basic Info. | |||
| Model NO. | MON-123 | Type | X-Ray Equipment |
| Material | Metal | Product Weight | 3.05kg |
| Sku | 142004027-142004030 | Transport Package | Standard Carton |
| Specification | 26*21*17 CM | Trademark | Mondent |
| Origin | China Mainland | HS Code | 4202129000 |
| Production Capacity | 50000PCS/Per Month |
Product Description:

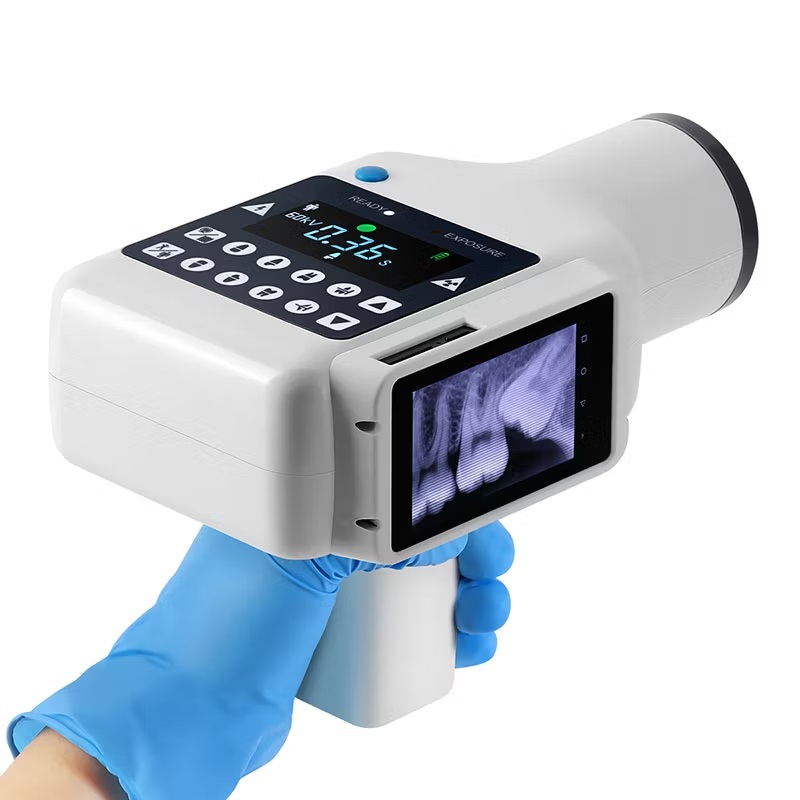

Portable dental X-ray machine,versatile dental X-ray machine with built-in display for instant image viewing
FEATURE:
- Instant Image Display: When connected to our sensors, built-in screen shows X-ray images immediately after capture.
- Independent Operation: Functions seamlessly even without the sensor connected.Compatible with digital sensors, X-ray film, and image plate scanners.
- Flexible Sensor Use: Sensor can be paired with other X-ray machines, allowing versatile integration across different setups.
- Enhanced Workflow: Streamlined design improves efficiency and adapts to various clinical needs.
- Effortless Image Transfer: Easily transfer captured images to a computer via USB or Bluetooth.
- Sensor Options: You can choose one of the two sensor models to suit different needs.
- Handheld Design: Easy-to-grip, portable X-ray machine for convenient use and mobility.
- The body is small, light in weight, and the radiation leakage is less than 20μgy/h.
- It has excellent image quality, portable storage, save more space.
- It uses high frequency and DC international power supply.
- All of the components installed in the central PC board concentrated. Shock,set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.
- Different exposure times are preset for adults and children.
- The battery is durable, it can take about 4 hundred images after fullcharged. TECHNICAL SPECIFICATIONS:
Tube voltage: 60KV Tube current: 2mA Exposure time: 0.1-2.0S Frequency: 30kHz Rate power: 120VA Distance from skin to cone: 105mm Tube focus: 0.8mmx0.8mm Battery: DC14.8V 1600mAh Charger input voltage: AC100V-240V+10% Output voltage: DC16.8V Ambient temperature: 5ºC~40ºC Relative temperature: <75%RH
Sensor technical parameter:
| Model: | COX2230 | COX2635 |
| Detector Technology: | APS CMOS | APS CMOS |
| Pixel Size: | 18.5μm | |
| Theoretical Resolution: | 27lp/mm | |
| True Resolution: | CsI:≥14 lp/mm | |
| Pixel Matrix: | 1200*1600 | 1402*1888 |
| Active Area(mm): | 29.6´ 22.2 | 35´ 26 |
| Mechanical Size(mm): | 39´ 28.5´ 6 | 44.5´ 33.0´ 6 |
| Data interface: | USB | |
| Digitization: | 12/14/16 bit | |
| Imaging Time: | 3-4s | |
Package:
1.Aluminum box *1
2.X-ray machine *1
3.Sensor (with U disk) *1
4.Charger *1
5.Manual*1
6.Data cable*2
Note:
We are have 2 options for you to choose,
RAY-221 with 2230sensor
RAY-221 with 2635sensor
If you have any questions, please consult our account manager and we will answer you as soon as possible.Thank you!
