Description
| Basic Info. | |||
| Model NO. | MON-137 | Light Way | Without Light |
| Water Way | Inner Channel | Usage Times | Non-Disposable |
| Application | Adult, Child | Loading Way | Wrench Type |
| Number of Holes | Four Holes | Rotating Speed | High&Low Handpiece |
| Instrument Classification | Class I | Rotation Speed | 370, 000-420, 000 Rpm |
| High Speed Handpiece Chuck | Push Button | Sku | MON-137 |
| Holes | 4 Holes | Transport Package | Carton for High&Low Speed Handpiece |
| Specification | JD005-16 M4S | Trademark | Mondent OEM/ODM |
| Origin | China Mainland | Production Capacity | 50000 Pieces/ Month |
Product Description:

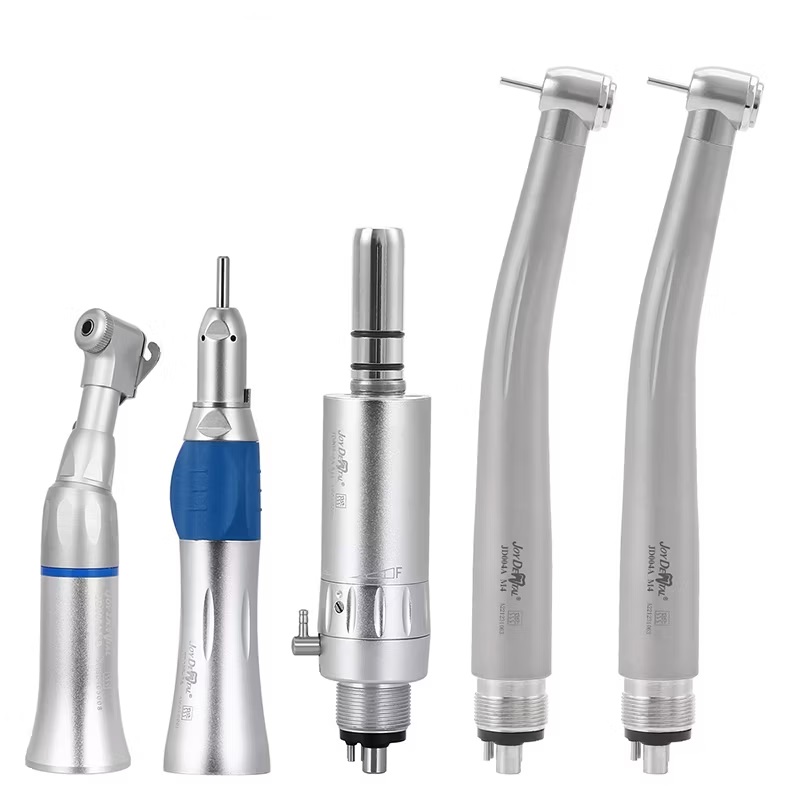

Specification for Dental High and Low Speed Handpiece Kit:
High Speed Handpiece
| Description: | Standard Push button type, high speed handpiece, Single-way water spray |
| Needle Change Type | Push button |
| Air Pressure | 180~250 KPa (1.8~2.5 kgf/cm2) |
| Water Pressure | 198Kpa (2 kg) |
| Rotation Speed | 370,000-420,000 rpm |
| Head Hight | 13.14 mm |
| Head Diameter | φ11.2 mm |
| Bur Applicable | φ1.59mm~φ1.6mm×21mm~23mm (diameter×length) |
| Noise | ≤70dB |
Low Speed Kit Features:
- E-type connector
- Wrench type
- Precise technology, Steady, no vibration while revolving, offering a steady operation.
- Suitable for any E-type handpiece accords with ISO standard
- 135°C Autoclavable, suitable for both steam and chemical autoclav
Contra Angle Handpiece
- Low Speed 22,000-27,000 rpm.
- The shank of the instrument mounted therein is 2.35 mm
- Fastening of the instruments with a turning latch
- Autoclavable 135°C
- For any lab or E-type motors
Straight Nosecone
- Working pressure: 0.3MPa ;
- 0.25MPa (Measure meter is installed at the end of air motor to measure the air pressure).
- Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)
- Noise: ≤68dB
- Air consumption: about 56L/min
- Ratio: 1:1
Air Mortor EX-203
- Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
- 1:1 Direct Drive
- Borden 2 holes/ Midwest 4 hole
- Max speed 20,000 min-1
Packing List for Dental Hanpiece Kit :
- E-type air motor 2-Hole/4-hole: 1 each
- Straight nose cone: 1 each
- Contra Angle handpiece: 1 each
- Water spray nozzle: 1 each
- Oil spray nozzle: 1 each
- CAP Spanner: 1 each
- English manual: 1 each
